Reo Bars

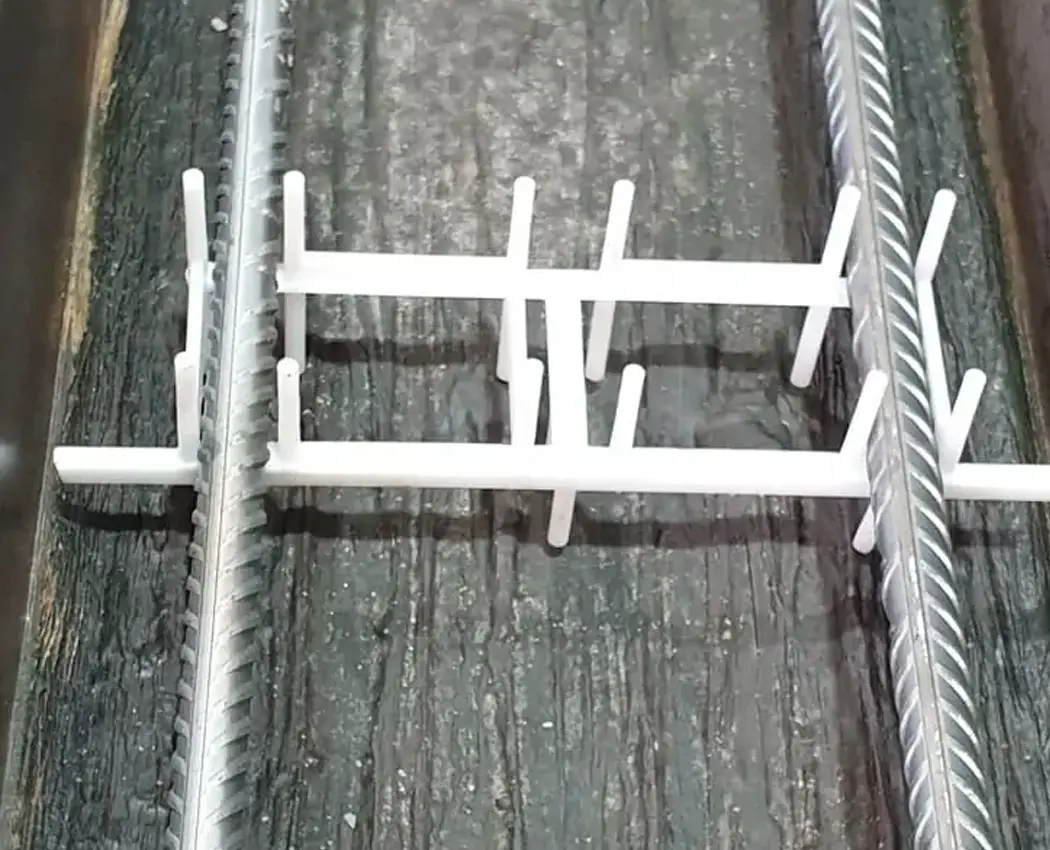

All Sunset Sleepers concrete sleepers have 2 x N12 Reo bars accurately placed using patented and engineered Reo support chairs.
These ensure the reinforcement is placed correctly in every Sleeper that leaves the manufacturing facility.
We can accomodate up to 3 x N12 Reo bars if required.

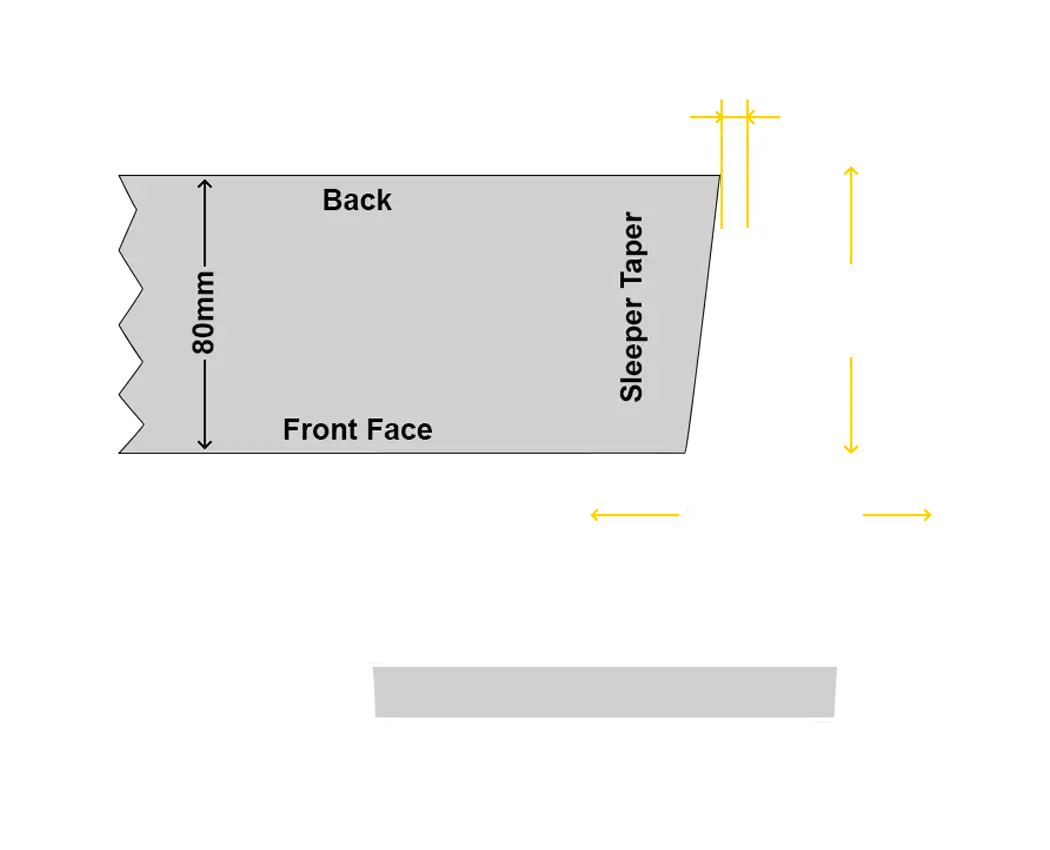

Channel Fitting Diagram
Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process.
Concrete Sleepers Weight & Capacity
| Sleepers Size (mm) | Weight (per unit) | Max Retained Height (5kPa) | Max Retained Height (10kPa) |
|---|---|---|---|
| 1190 x 200 x 80mm | 48kgs | 4400mm | 4000mm |
| 1500 x 200 x 80mm | 60kgs | 3400mm | 3000mm |
| 1800 x 200 x 80mm | 72kgs | 2800mm | 2400mm |
| 2000 x 200 x 80mm | 80kgs | 2400mm | 2200mm |
| 2400 x 200 x 80mm | 96kgs | 1800mm | 1400mm |
| 3000 x 200 x 80mm | 150kgs | 1600mm | 1200mm |
| 1190 x 200 x 100mm | 60kg | 6000mm | 5600mm |
| 1500 x 200 x 100mm | 75kg | 5600mm | 5200mm |
| 1800 x 200 x 100mm | 90kgs | 5000mm | 4800mm |
| 2000 x 200 x 100mm | 100kgs | 3500mm | 3300mm |
| 2400 x 200 x 100mm | 120kgs | 3000mm | 2800mm |
| 3000 x 200 x 100mm | 150kgs | 2500mm | 2000mm |
| 1190 x 200 x 120mm | 72kgs | 7500mm | 7000mm |
| 1500 x 200 x 120mm | 90kgs | 6800mm | 6400mm |
| 1800 x 200 x 120mm | 108kgs | 6500mm | 6000mm |
| 2000 x 200 x 120mm | 120kgs | 4500mm | 4300mm |
| 2400 x 200 x 120mm | 144kgs | 4000mm | 3600mm |
- The above retained heights are based on the following assumed soil properties: density:18 kN/m^3 – Ka:0.35 – internal friction angle:30°
- Measurements shown in millimetres (mm). Length is measured at the back of the sleeper. Note that all sleeper have a taper so the front will be 20mm shorter
- All Sleepers are made with 40mpa Concrete and 2 x N12 reinforcement bars as standard, alternative our engineering accomodates other reinforcemnt options
PDF Downloads
1.2m* Sleepers
Engineering Certificate
Download PDF
1.5m Sleepers
Engineering Certificate
Download PDF
1.8m Sleepers
Engineering Certificate
Download PDF
2m Sleepers
Engineering Certificate
Download PDF
2.4m Sleepers
Engineering Certificate
Download PDF
3m Sleepers
Engineering Certificate
Download PDF
Engineering Computation
PDF document – 12.9 MB
Download PDF
Installation Guide
PDF document – 267 KB
Download PDF
Accessories Price List
PDF document – 389 KB
Download PDF
Certificate of Compliance
Sunset Sleepers works closely with a well-known structural engineering firm to obtain a structural engineering certificate of compliance for our products. We recommend that you visit Barrason’s website to learn more about them and their services.
